Description

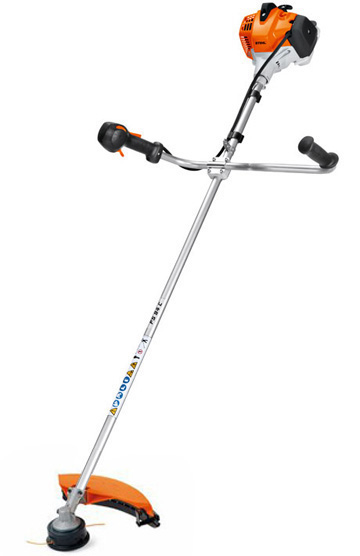

The FS 94 series is the lightest brushcutter for landscape maintenance. Suitable for mowing tough grass in areas that are difficult to access and around obstacles. STIHL ErgoStart for easy starting, bike handle, engine controls with ECOSPEED partial load control, 2-MIX engine, straight shaft. Supplied with shoulder harness and AutoCut mowing head.
Extend your domestic warranty from 2 to 3 years with the purchase of 5 litres of STIHL MotoMix® fuel and this product. Your STIHL Approved Dealer will register your extended warranty on the STIHL warranty database at point of purchase.
Standard features
Reduced-emission engine technology
2-stroke engine with stratified charge. A fuel-free layer of air is created between the burned charge in the combustion chamber and the fresh charge in the crankcase, reducing the amount of fuel lost during the charge cycle. This results in more power with a lower weight, up to 20% lower fuel consumption than regular 2-stroke engines and significantly reduced exhaust emissions.
Large fuel tank
The transparent fuel tank with a volume of 0.75 l ensures long working intervals with fewer fuel stops. The level is easily visible from the outside. Easy to refuel through a large, easily accessible tank opening. (similar to illustration)

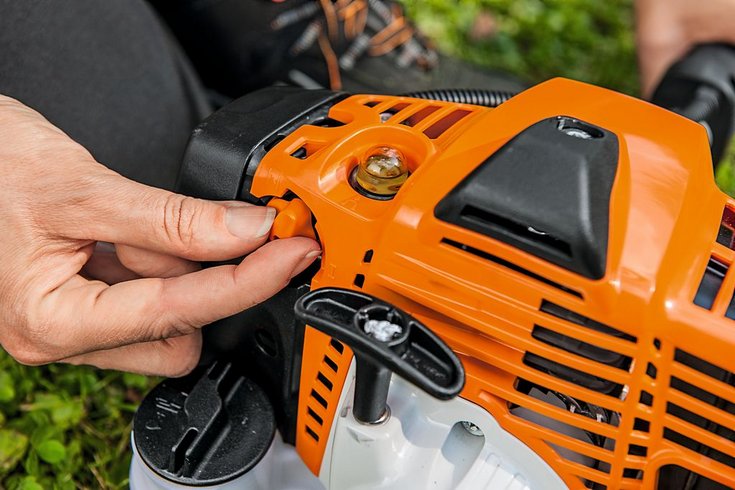

Manual fuel pump (Purger)
A small fuel pump delivers fuel to the carburettor at the touch of a button. This reduces the number of starting strokes required following extended breaks in operations.
STIHL ErgoStart (E)
STIHL ErgoStart cuts the effort required to start the tool by half, while the starter cord can be pulled at just one third of the normal force. A coil spring between the starter cord and the crankshaft smoothes out force peaks, making them virtually undetectable through the cord itself.
Simplified starting system
Simply set the choke, pump the fuel primer, pull the starter cord and away you go! The running machine then switches off after a brief press of the stop button. Once the machine is at a standstill, the ignition activates again automatically. Thus the ignition is always ready for starting.
Bike handle
When used in conjunction with a harness, the bike handle enables a smooth mowing action. The bike handle allows the machine to be easily guided, making it ideal for working on large areas and thus reducing fatigue.
STIHL ECOSPEED
STIHL ECOSPEED enables the user to control the brushcutter engine speed individually on the operating handle.
Anti-vibration system
Intense vibration at the handles of power tools can lead to long-term effects on blood vessels in the hands and arms. STIHL has therefore developed an effective anti-vibration system whereby the oscillations from the machine’s engine are dampened which significantly reduces vibrations at the handles.
| Technical data | Value |
|---|---|
| Capacity cm3 | 24.1 |
| Performance kW | 0.9 |
| Performance PS | 1.2 |
| CO² g/kWh | 794 |
| Weight kg 1) | 4.9 |
| Sound pressure level with mowing head dB(A) 2) | 93 |
| Sound pressure level with metal tool dB(A) 2) | 93 |
| Sound power level dB(A) 2) | 108 |
| Vibration value, left with mowing head m/s2 3) | 4.7 |
| Vibration value, right with metal tool m/s2 3) | 3.5 |
| Vibration value, left with metal tool m/s2 3) | 4.3 |
| Vibration value, right with mowing head m/s2 3) | 4 |
| Total length cm 4) | 178 |
| Displacement cm³ | 24.1 |
| Power output kW/bhp | 0.9/1.2 |
| Weight kg 5) | 4.9 |
| Standard cutting tool | AutoCut 25-2 |
| Tank volume l | 0.54 |
