Description

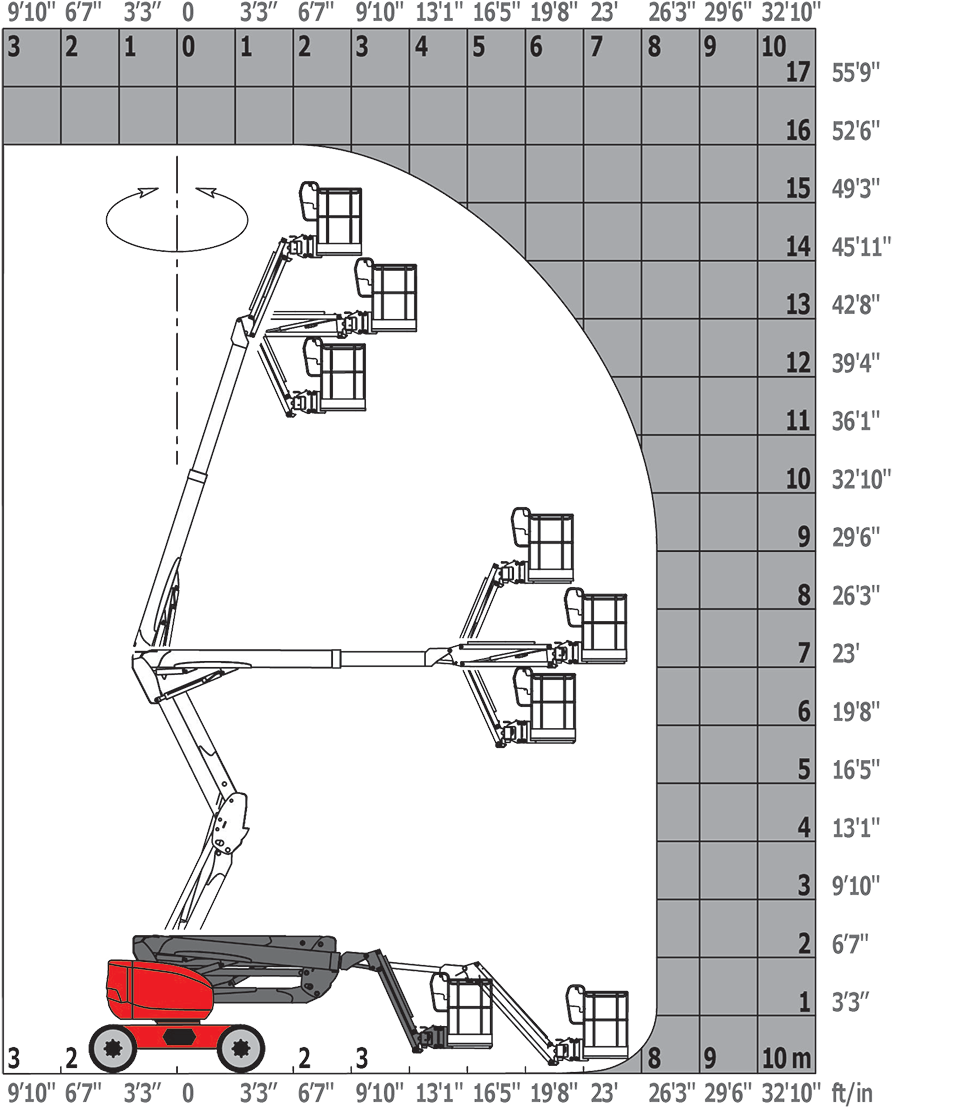

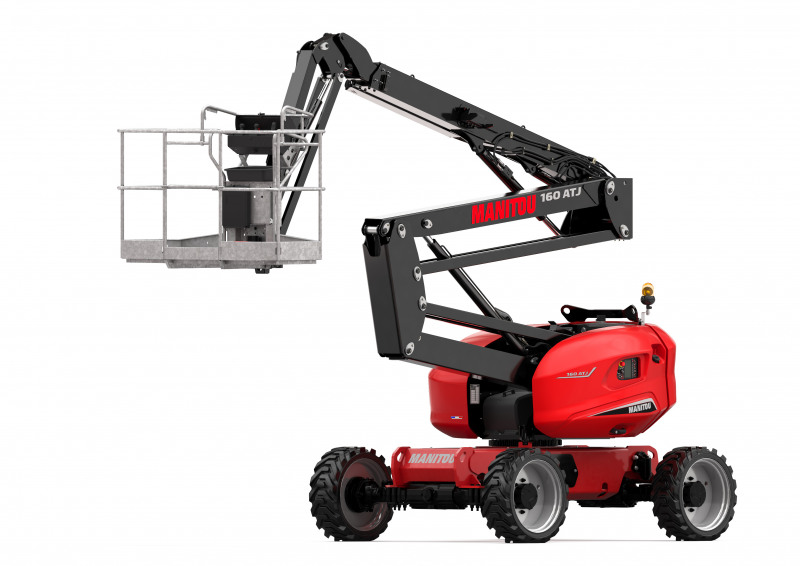

The Manitou 160 ATJ articulated platform is the most suited to work outdoors on uneven or sloping ground. A capacity of 230 kg, an up and over clearance of 7.38 m and a working height of 16 m provides the operator with a large working area.
Equipped with a diesel motor and 4-wheel drive combined with 3 steering modes, the 160 ATJ guarantees a high level of performance and autonomy. The intelligent design of the console provides a clear and precise environment for easy handling. The engine speed’s hydraulic technology allows for a reduction in noise levels and consumption.
Technical Specification
| Lifting height | 14.01 |
|---|---|
| Lifting capacity | 230 kg |
| Max reach | 8.3 m |
| Overhang | 7.38 m |
| Overall length | 6.53 m |
| Overall length (folded) | 4.44 m |
| Height | 2.37 m |
| Overall height (folded) | 2.61 m |
| Manufacturer Make & Model | Manitou 160 ATJ |
